All inlays

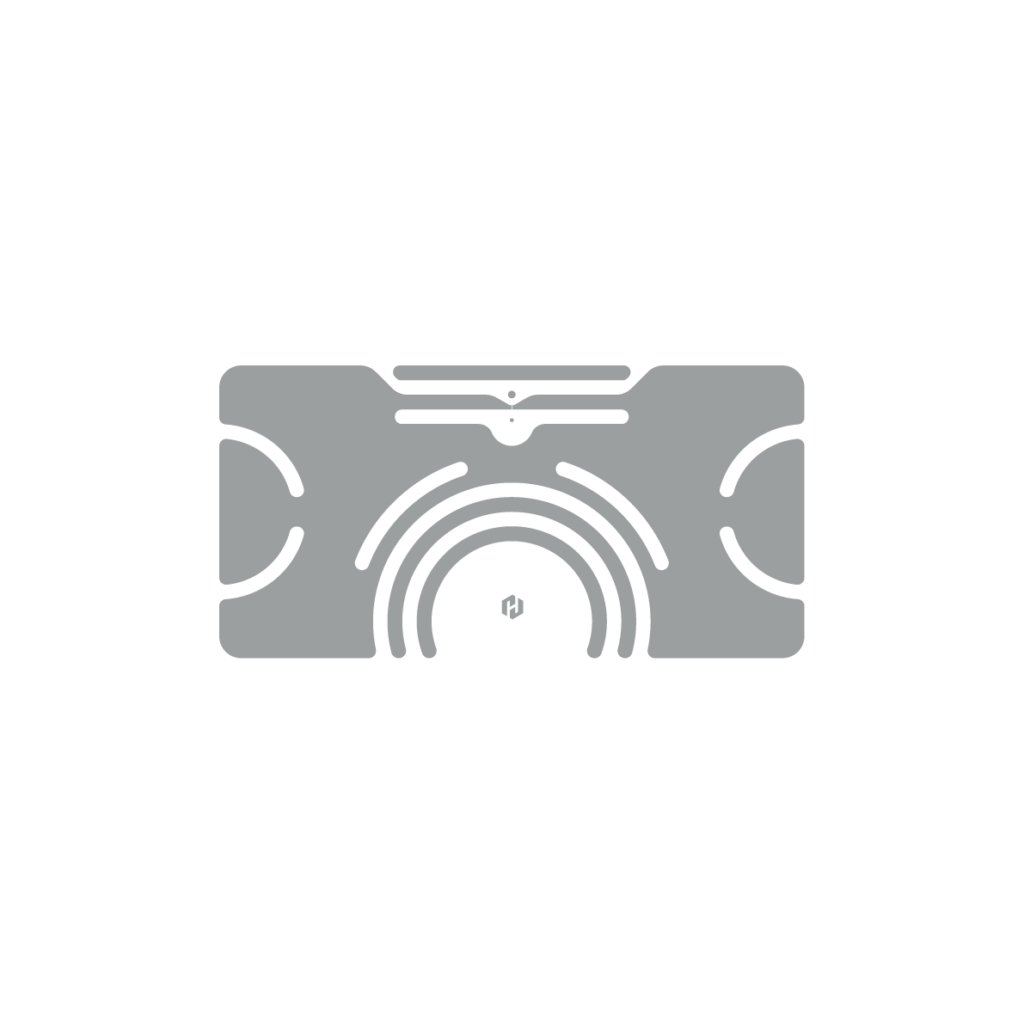

TX8040 UCODE 8
Dedicated to automotive tire tagging and on other high dielectric materials
80 x 40 mm (3.15″ x 1.57″)
NXP UCODE 8
Dry InlayPaper Face

Description

Improved tire tagging with Hana’s TX8040 inlays: Dedicated RFID tags for automotive tire tagging and on other high dielectric materials.
Datasheet download Order Samples Back to Inlay Offering

Technical information

Antenna Size
80 x 40 mm (3.15" x 1.57")
Web Width
92.5 mm (3.64")
IC
NXP UCODE 8
Available Delivery Formats / SKU
Dry Inlay / TX8040AU8
Paper face / TX8040AU8-WW
User memory
n/a
EPC memories
128-bit
TID memories
96-bit
Frequency bands
UHF 860 - 960 MHz
International standards
EPC Global Gen2v2
ISO/IEC 18000-63
